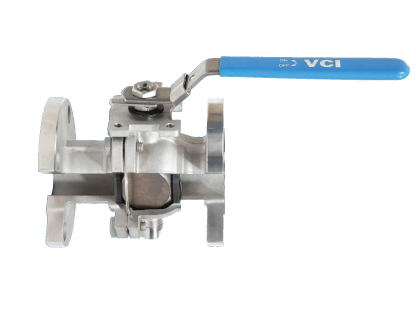

Floating Recessed Ball Valves Series F200R
Robinets à boisseau sphérique à encastrement flottant Série F200R
Fire Safe & Fugitive Emission
The VCI F200R is a fire-safe, fugitive emission–certified ball valve available in sizes from ½” to 8”, and pressure classes ANSI 150# and 300#. Engineered for demanding applications prone to debris accumulation and seat damage, it features a recessed ball design that enhances sealing integrity and reliability. This configuration minimizes the risk of jamming, ensuring dependable shut-off performance in harsh service environments.
Technical Specifications
Spécifications Techniques
- Design: API 6D & ASME B16.5
- Sizes: 1/2" – 8" Full Port
- Pressures: ANSI Class 150 & 300
Features
Caractéristiques
- Bolted Body, 2-Piece Construction
- Live Loaded Seats
- Metal to Metal Seated and/or Soft Seated
- Anti-Blow-Out Stem
- Full Range of Materials
- Bubble tight shut-off (Soft Seated) & Class V shut-off (Metal Seated)
- Firesafe Certified
- Fugitive Emission Certified
- SIL 3 Certified for 1oo2 Configuration
- SIL 3 Certified by 3rd Party Organization: FSES
