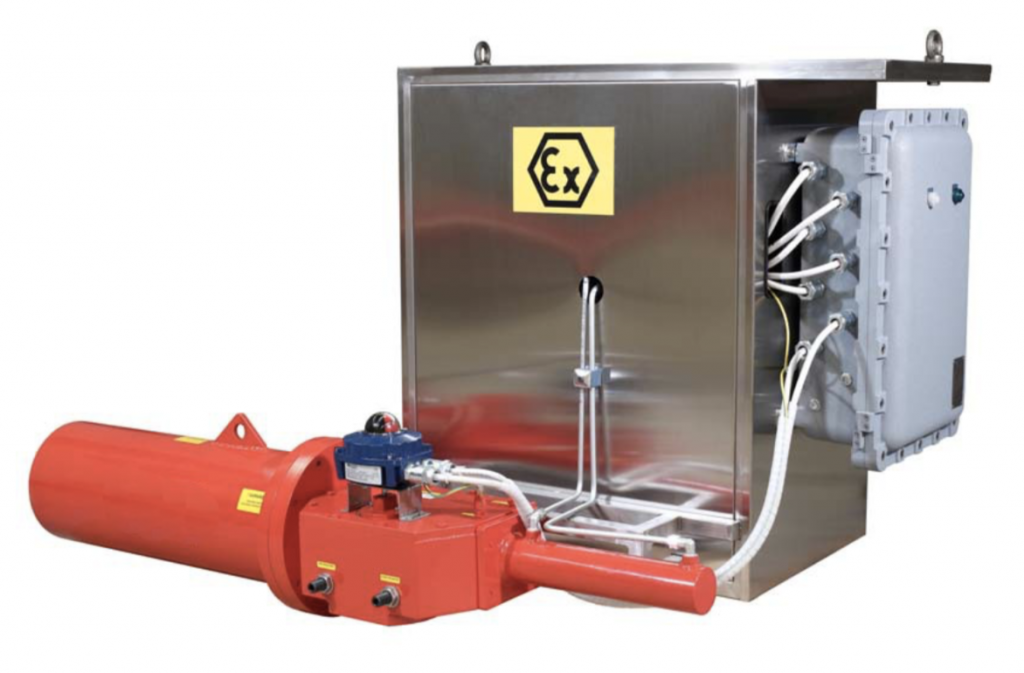

EY: Heavy Duty Scotch Yoke Electro-Hydraulic Actuator
Heavy Duty Scotch Yoke electro-hydraulic actuator, symmetrical and inclined, with motion from 0 to 90°.
Heavy Duty Scotch Yoke electro-hydraulic actuator, symmetrical and inclined, with motion from 0 to 90°.
- Power supply: autonomous hydraulic system using filtered hydraulic oil
- Double and stop adjustments, open and closed position: 0 ± 5° / 90 ± 5°
- Torque output: configurable by the hydraulic system according to customer needs
- Temperature:
- Standard: -30 to +100°C (-22 to +212°F)
- High temperature: -20 to +150°C (-4 to +302°F)
- Low temperature: -55 to +80°C (-67 to +176°F)
- Construction: welded steel, epoxy powder coated, red (RAL 3020) or per customer specifications
- Interface: ISO 5211 / DIN 3337, NAMUR valves, VDI/VDE3845 and NAMUR top-mounted accessories
