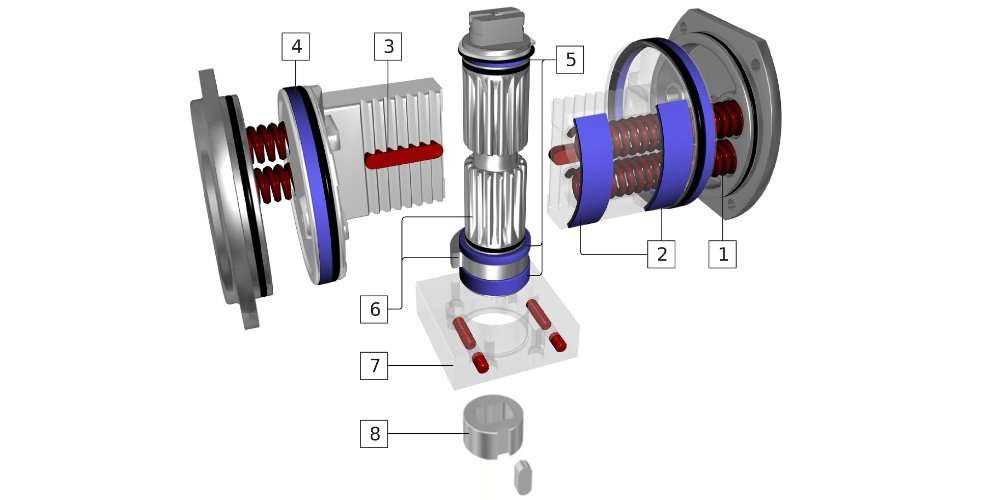

Benefits

1. Springs

The springs are located in the piston rack, the same overall dimensions for the DA and SR actuators.
No special tools are required to switch from DA to SR or vice versa.
Long tightening is standard to completely relax the springs.

2. Pads for piston wear

“POM” anti-wear pads encapsulated on the piston prevent contact between cylinder and piston, thus ensuring low friction.
“POM” double-encapsulation wear pads absorb the lateral load at the start of each stroke.

3. Twin guide bars

Twin guide bars absorb any lateral load, reducing wear.

4. Support bearing

The piston support bearings, located behind the O-ring, ensure linear motion and prevent wear on the cylinder surface.

5. Triple axis bearing

Triple axis bearing to prevent any negative load on the drive shaft.

6. Crankshaft and CAM

The CAM mechanism allows a 2.5° overlap in both directions.
The internal depth of the transmission shaft allows the total engagement of the valve shaft at any height.

7. Adapter kit

The Integral Body Adapter Kit (BAK) is interchangeable with a wide range of valves for direct mounting using an interchangeable sleeve.
The Dual End Stop adjustment is integrated with the adapter and works in combination with the CAM, machined on a single drive shaft, remaining outside the pressurized cylinder.

Insert

Made of stainless steel, it can be rotated for cross-mounting or parallel mounting.
The insert is held inside the crankshaft by means of a safety ring.
It can be square, double D or round with a key for direct mounting.

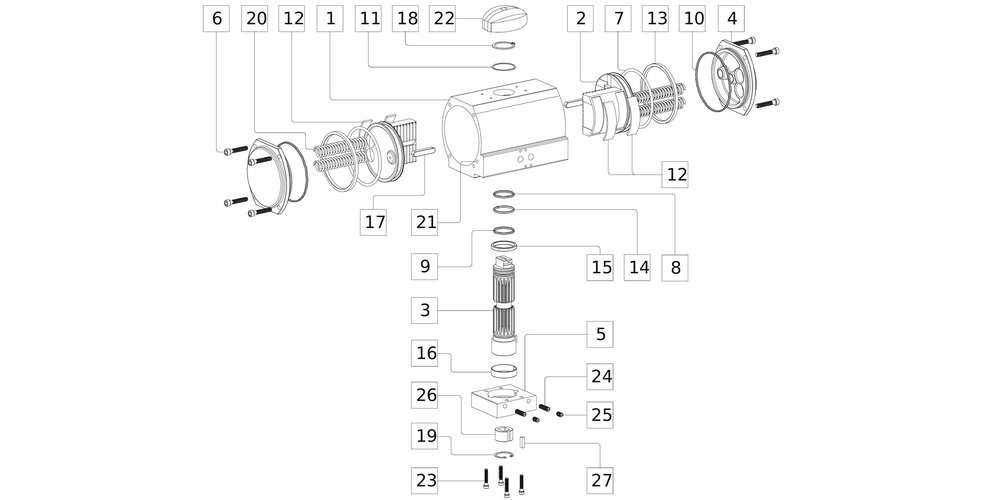

Components

Element Description Quantity Standard Material CNI® Material
1Body1Aluminum, AnodizedAluminum, CNI® treated
2Piston2AluminumAluminum, Anodized
3Driveshaft1Steel, ZinkplatedSteel, Nickelplated + Teflon
4Endcap2Aluminum, Polyester CoatedAluminum, CNI® treated
5Body Adaptor1Aluminum, AnodizedAluminum, CNI® treated
6Endcap Bolt8Stainless SteelStainless Steel
7Piston O-ring2NBRNBR
8Driveshaft Upper O-ring1NBRNBR
9Driveshaft Lower O-ring1NBRNBR
10Endcap O-ring2NBRNBR
11Washer1POMPOM
12Wearpad4POMPOM
13Piston Back-up Bearing2POMPOM
14Driveshaft Upper Bearing1POMPOM
15Driveshaft Lower Bearing1POMPOM
16Body Adaptor Bearing1POMPOM
17Guide Bar2SteelSteel
18Driveshaft Circlip1Steel, NickelplatedSteel, Nickelplated
19Body Adaptor Circlip1Steel, NickelplatedSteel, Nickelplated
20Spring (Outer/Inner)Max 4/4SiCrSiCr
21Ball Seal2NBRNBR
22Position Indicator1POMPOM
23Body Adaptor Bolts4Stainless SteelStainless Steel
24Stop Adjustment Screws2Stainless SteelStainless Steel
25Lock Screws2Stainless SteelStainless Steel
26Insert1Stainless SteelStainless Steel
27Insert Sleeve Key1Stainless SteelStainless Steel

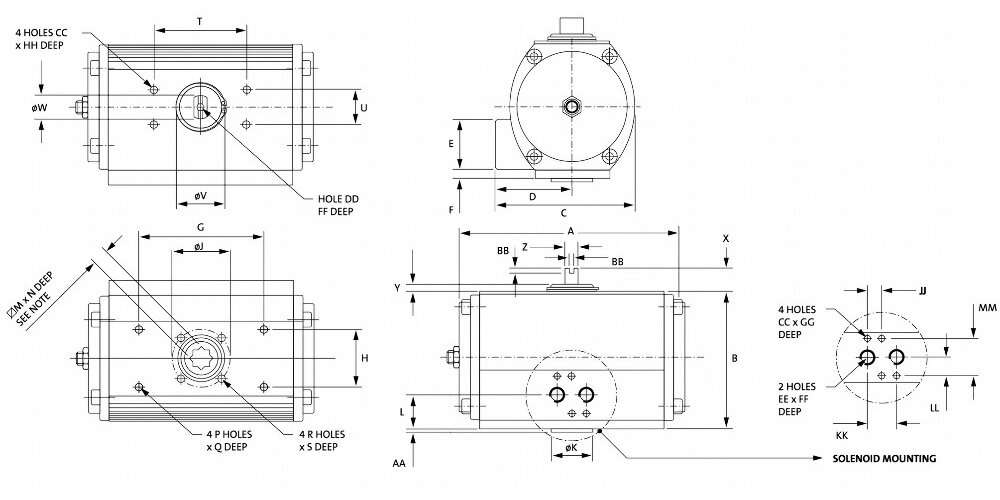

Dimensions

Metric (mm)

SizeISOABCDEFGHJKØLMNPØQØRSTUVWXYZAABBCCDDEEFFØGGØHHJJØKKLLMMNNØPPQQRR
8F05162,0109,0105,057,042,07,5127,080,05,020,035,027,04,011,535,020,080,030,018,012,0M55,0M612,08,01/8 24,016,032,079,030,050,0M65,520,017,014,023,0M522,0
8F07162,0109,0105,057,042,07,5127,080,05,020,035,027,04,011,535,020,080,030,018,012,0M55,0M612,08,01/8 24,016,032,079,047,070,0M85,529,517,017,033,0M624,0
12F05194,0118,5121,067,043,08,0138,580,05,520,035,029,54,011,546,020,080,030,020,012,0M55,0M612,08,01/4 24,016,032,079,030,050,0M65,520,017,014,023,0M622,0
12F07194,0118,5121,067,043,08,0138,580,05,520,035,029,54,011,546,020,080,030,020,012,0M55,0M612,08,01/4 24,016,032,079,047,070,0M85,529,517,017,033,0M624,0
20F07218,0140,5136,572,043,08,0164,590,06,520,055,029,54,019,050,032,080,030,024,012,0M55,0M612,08,01/4 24,016,032,089,946,070,0M86,629,520,017,033,0M828,0
35F07266,0166,5156,078,043,08,5196,7120,07,030,055,030,04,019,061,032,080,030,030,212,0M55,0M612,08,01/4 24,016,032,0119,946,070,0M89,029,520,017,033,0M1034,0
35F10266,0166,5156,078,043,08,5196,7120,07,030,055,030,04,019,061,032,080,030,030,212,0M55,0M612,08,01/4 24,016,032,0119,961,0102,0M109,039,025,022,044,0M1034,0
55F10312,0207,5191,095,543,020,5242,5140,07,530,085,042,04,025,461,040,0130,030,035,012,0M55,0M612,08,01/424,016,032,0139,961,0102,0M1011,039,025,022,044,0M1040,0
55F12312,0207,5191,095,543,020,5242,5140,07,530,085,042,04,025,461,040,0130,030,035,012,0M55,0M612,08,01/424,016,032,0139,975,0125,0M1211,050,025,027,055,0M1040,0
70F10340,0211,0191,095,543,020,5247,0140,07,030,085,042,04,025,472,040,0130,030,036,012,0M55,0M612,08,01/424,016,032,0139,961,0102,0M1011,039,025,022,044,0M1040,0
70F12340,0211,0191,095,543,020,5247,0140,07,030,085,042,04,025,472,040,0130,030,036,012,0M55,0M612,08,01/424,016,032,0139,975,0125,0M1211,050,025,027,055,0M1040,0
100F14361,0253,3227,0113,543,039,5303,0160,07,030,0100,161,04,025,478,040,0130,030,049,812,0M55,0M612,08,01/424,016,032,0159,988,0140,0M1614,062,535,036,068,0M1457,0
150F14390,0302,0280,0140,043,056,5351,0160,07,030,0100,178,04,025,478,040,0130,030,049,012,0M55,0M612,08,01/424,016,032,0159,988,0140,0M1614,062,535,036,068,0M1457,0

Imperial (inches)

SizeISOABCDEFGHJKØLMNPØQØRSTUVWXYZAABB(GAS)CCDDEEFFØGGØHHJJØKKLLMMNNØPPQQRR
8F056,384,294,132,241,650,305,003,150,200,791,381,060,160,451,380,793,151,180,710,47 8F0510-320,20M60,470,311/80,940,631,263,111,181,971/40,220,790,670,550,91M50,87
8F076,384,294,132,241,650,305,003,150,200,791,381,060,160,451,380,793,151,180,710,47 8F0710-320,20M60,470,311/80,940,631,263,111,852,765/160,221,160,670,671,30M60,94
12F057,644,674,762,641,690,315,453,150,220,791,381,160,160,451,810,793,151,180,790,47 12F0510-320,20M60,470,311/40,940,631,263,111,181,971/40,220,790,670,550,91M60,87
12F077,644,674,762,641,690,315,453,150,220,791,381,160,160,451,810,793,151,180,790,47 12F0710-320,20M60,470,311/40,940,631,263,111,852,765/160,221,160,670,671,30M60,94
20F078,585,535,372,831,690,316,483,540,260,792,171,160,160,751,971,263,151,180,940,47 20F0710-320,20M60,470,311/40,940,631,263,541,812,765/160,261,160,790,671,30M81,10
35F0710,476,566,143,071,690,337,744,720,281,182,171,180,160,752,401,263,151,181,190,47 35F0710-320,20M60,470,311/40,940,631,264,721,812,765/160,351,160,790,671,30M101,34
35F1010,476,566,143,071,690,337,744,720,281,182,171,180,160,752,401,263,151,181,190,47 35F1010-320,20M60,470,311/40,940,631,264,722,404,023/80,351,540,980,871,73M101,34
55F1012,288,177,523,761,690,819,555,510,301,183,351,650,161,002,401,575,121,181,380,47 55F1010-320,20M60,470,311/40,940,631,265,512,404,023/80,431,540,980,871,73M101,57
55F1212,288,177,523,761,690,819,555,510,301,183,351,650,161,002,401,575,121,181,380,47 55F1210-320,20M60,470,311/40,940,631,265,512,954,921/20,431,970,981,062,17M101,57
70F1213,398,317,523,761,690,819,725,510,281,183,351,650,161,002,831,575,121,181,420,47 70F1210-320,20M60,470,311/40,940,631,265,512,954,921/20,431,970,981,062,17M101,57
100F1414,219,978,944,471,691,5611,936,300,281,183,942,400,161,003,071,575,121,181,960,47 100F1410-320,20M60,470,311/40,940,631,266,303,465,515/80,552,461,381,422,68M142,24
150F1415,3511,8911,025,511,692,2213,826,300,281,183,943,070,161,003,071,575,121,181,930,47 150F1410-320,20M60,470,311/40,940,631,266,303,465,515/80,552,461,381,422,68M142,24

Torque Table (SR)

Spring-return torque (Nm) table

Label Tongs N° Air supply (bar)
Spring torque 4 5 5,5 6
0°90° 0°90° 0°90° 0°90° 0°90°
385,410,510,45,311,87,916,411,218,313,2
106,713,19,12,713,16,715,08,617,010,6
117,414,412,45,314,47,316,39,3
128,015,713,76,015,78,0
5812,021,821,812,030,320,534,524,738,728,9
1015,027,218,86,627,315,131,519,335,723,5
1116,529,925,812,430,016,634,220,8
1218,032,628,513,832,718,1
10826,741,040,926,657,843,566,252,074,760,4
33,421,234,224,651,133,359,641,868,050,2
1136,756,347,828,256,236,664,745,1
1240,161,452,931,561,340,0
24/04,88,88,84,912,38,314,010,015,711,7
4/26,111,07,62,711,06,112,87,814,59,5
4/36,712,110,45,012,16,713,98,4
4/47,313,211,55,613,27,315,08,9
44/08,715,816,69,520,813,725,017,929,222,1
4/210,819,614,45,618,69,822,914,027,118,2
4/311,921,717,67,821,812,026,016,2
4/412,923,620,710,124,914,329,216,8
84/021,138,438,921,653,936,661,444,168,951,6
4/223,843,233,612,048,627,056,134,563,642,0
4/329,052,846,022,253,529,761,037,2
4/431,757,650,824,958,332,466,136,7
124/028,852,452,929,373,349,783,559,993,770,1
4/236,065,554,716,266,136,676,346,886,557,0
4/339,672,162,530,072,740,382,950,5
4/443,278,669,133,779,343,988,448,7
204/047,786,886,947,8120,681,5137,498,3154,2115,1
4/253,7108,575,026,1108,659,8125,476,6142,393,4
4/365,5119,4102,648,9119,565,8136,382,6
4/471,6130,2113,554,9130,371,7
354/088,4160,8161,088,7223,4151,0254,6182,2285,7213,4
4/2110,5201,0138,948,5201,3110,8232,5142,0263,6173,2
4/3121,6221,1190,290,7221,4121,9252,6153,1
4/4132,6241,2210,4101,8241,5133,0
554/0141,0256,4256,8141,4356,3240,9406,0290,6455,7340,3
4/2176,3320,5221,577,3321,0176,8370,7226,5420,5279,2
4/3193,9352,6303,4144,7353,1194,5402,8244,2
4/4211,5384,6335,5162,4385,2212,1
704/0195,0354,0355,0196,0493,0333,0561,0402,0630,0471,0
4/2243,0443,0306,0107,0444,0245,0513,0314,0581,0382,0
4/3268,0487,0420,0201,0488,0269,0557,0338,0
4/4292,0531,0464,0225,0533,0294,0
1004/0265,0482,0483,0266,0670,0453,0764,0547,0857,0640,0
4/2331,0603,0417,0146,0604,0333,0697,0426,0791,0520,0
4/3365,0663,0571,0272,0664,0366,0758,0459,0
4/4398,0723,0631,0306,0725,0399,0
1504/0391,0711,0712,0392,0988,0668,01126,0806,01264,0944,0
4/2489,0889,0615,0215,0890,0491,01028,0629,01166,0766,0
4/3538,0977,0842,0402,0979,0540,01117,0678,0
4/4586,01066,0931,0451,01069,0589,0
2506606,0936,01159,0829,01600,01270,01821,01491,02042,01712,0
8808,01248,0957,0517,01398,0958,01619,01179,01840,01400,0
101010,01560,01196,0646,01417,0867,01638,01088,0
121212,01872,01215,0555,01436,0776,0
400101180,01820,02022,01382,02823,02183,03223,02583,03623,02983,0
121416,02184,01786,01018,02587,01819,02987,02219,03387,02619,0
151770,02730,02233,01273,02633,01673,03033,02073,0
161888,02912,02515,01491,02915,01891,0

Spring-return torque (in/lbs) table

Label Tongs N° Air supply (bar)
Spring torque 4 5 5,5 6
0°90° 0°90° 0°90° 0°90° 0°90°
38479397511217514599169123
105911684281085213276156100
1165128103401276415188
12711391215314577
58106193202115253167304218356269
1013324117568227119278170329222
1114626521395265146316198
1215928920070252122303173
108236362379254482356584459687562
33,421,234,224,651,133,359,641,868,050,2
11325498393220496323599426
12355544467278570381
24/0427882471036712488144109
4/25497712792481136913490
4/35910786381075912880
4/465117101491227014488
44/08715816695208137250179292221
4/21081961445618698229140271182
4/311921717678218120260162
4/4129236207101249143292168
84/0187340360207451298542389633480
4/2211382319133407219495304583390
4/3257467381171472262563353
4/4281510448220539311599384
124/0255464489281613405737529861653
4/2319580425165549289673413797537
4/3350638518231642356766480
4/4382696610297734422794523
204/04227688044591008663121386714171072
4/247596071126790947111076761304880
4/3580105785037610555811259785
4/46341152100248412066891452864
354/078214231489850186812292247160826251987
4/29781779129449516738742052125324301632
4/31076195715756971954107623331455
4/41174213518578982235127727181506
554/01248226923751356297919603583256441873169
4/2156028362063790266713943271199938752603
4/317163121251211123116171637202321
4/418723404296114333565203843462390
704/01726313332821877411627124951354857854383
4/22151392128581098369219354527277153623607
4/323724310347215384306237451413209
4/425844699409519864929282160303490
1004/02345426644702554560636906742482778785964
4/22929533738811485501626226151375972864896
4/332305868472320935860323069964367
4/435226399556827006705383879404750
1504/034606292658737618262543799377113116118788
4/243287868572221967397387390725551107477228
4/3476186466964308986394765103146442
4/4518694348216398098915657120407670
250653638284107117797133911047716070131581874915838
87151110458928504211607772314287104041696713085
10893913806982449691250576511518510333
121072616567107224898134037581160219065
4001010443161071872113069235811793128442227943330227657
121253219328166369854214981471826359195823122124446
15156652416118373989823235147642809819629
161670925771221941315827057180243330219024

Torque Table (DA)

Double-acting torque (Nm) table

Size Air supply (bar)
23455,567
12,94,45,97,38,18,810,3
26,810,313,717,118,820,523,9
37,911,915,819,821,723,727,7
413,920,827,734,738,141,648,5
516,925,433,842,346,550,759,2
830,045,060,075,082,590,0105,0
1033,850,767,684,593,0101,4118,3
1240,861,381,7102,1112,3122,5142,9
2067,3101,0134,6168,3185,1201,9235,6
35124,7187,0249,3311,7342,8374,0436,3
55199,0298,5398,0497,5547,3597,0696,5
70275,0412,5550,0687,5756,3825,0962,5
100374,0561,0748,0935,01028,51122,01309,0
150551,7827,51103,31379,21517,11655,01930,8
250882,71324,01765,32206,72427,32648,03089,3
4001601,02401,53202,04002,54402,84803,05603,5

Double-acting torque (in/lbs) table

Size Air supply (psi)
405060708090100
132,640,748,857,065,173,281,4
283,0103,8124,5145,3166,0186,8207,5
396,0120,0144,0168,0192,0216,0240,0
4168,5210,6252,8294,9337,0379,1421,3
5206,0257,5309,0360,5412,0463,5515,0
8365,0456,3547,5638,8730,0821,3912,5
10413,5516,9620,3723,6827,0930,41033,8
12497,0621,3745,5869,8994,01118,31242,5
20819,01023,81228,51433,31638,01842,82047,5
351527,51909,42291,32673,13055,03436,93818,8
552371,02963,83556,54149,34742,05334,85927,5
703344,54180,65016,85852,96689,07525,18361,3
1004552,55690,66828,87966,99105,010243,111381,3
1506712,58390,610068,811746,913425,015103,116781,3
25010740,013425,016110,018795,021480,024165,026850,0
40019485,524356,929228,334099,638971,043842,448713,8

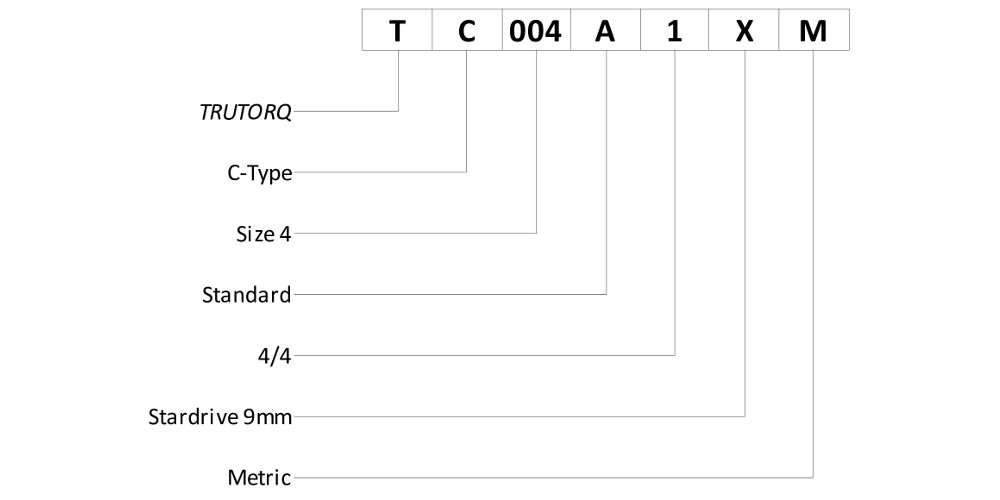

Numbers

Label Type Size Finish Action Tree Threading Optional code
T Trutorq C‑Type 002 C‑Type A Standard 0 DA C & E‑Type 002 X=09 mm C‑Type M Metric VS Viton Seal
E E‑Type 004 CNI 1 SR 4/4 004 X=11 mm U Imperial XM Crossmount
S S‑Type 008 Epoxy 2 SR 4/3 008 X=14 mm FO Fail Open
X 180° C‑Type 012 Polyester 3 SR 4/2 012 X=17 mm FA Fast Acting
020 4 4 SR 4/1 020 X=17 mm HT High Temperature
035 5 5 SR 4/0 035 X=22 mm LT Low Temperature
055 0 DA C‑Type 250 055 X=27 mm
070 1 1 SR 12 070 X=27 mm
100 3 3 SR 10 100 X=36 mm
150 5 5 SR 8 150 X=36 mm
250 7 7 SR 6 250 X=46 mm
400 0 DA C‑Type 400 400 X=55 mm
