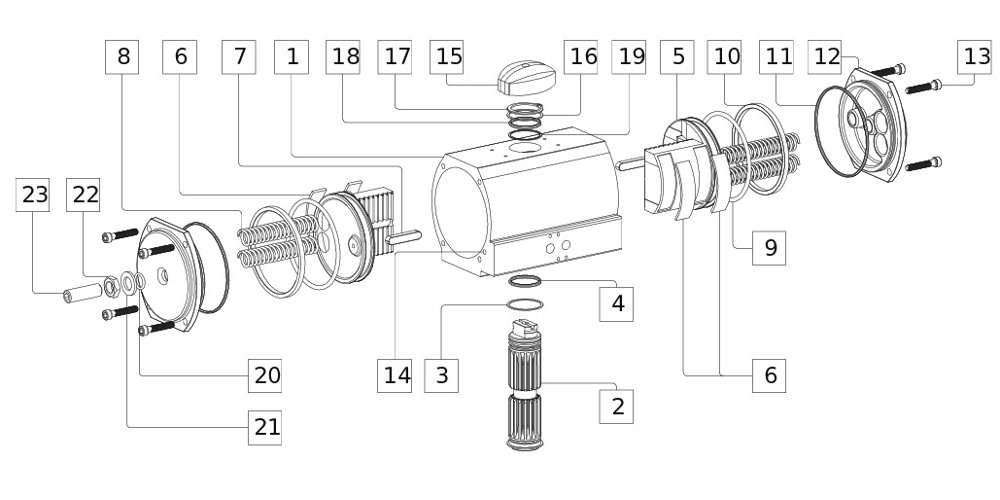

Components

Element Description Quantity Standard Material CNI® Material
1Body1Aluminum, AnodizedAluminum, CNI® treated
2Driveshaft1Steel, ZinkplatedSteel, Nickelplated + Teflon
3Washer1POMPOM
4Driveshaft Lower O-ring1NBRNBR
5Piston2AluminumAluminum, Anodized
6Wearpad4POMPOM
7Guide Bar2SteelSteel
8Spring (Outer/Inner)Max 4/4SiCrSiCr
9Piston O-ring2NBRNBR
10Piston Back-up Bearing2POMPOM
11Endcap O-ring2NBRNBR
12Endcap Plain + Endcap with Adjustment1+1 (2-35)
0+2 (55-150)		Aluminum, Polyester CoatedAluminum, CNI® treated
13Endcap Bolt8Stainless SteelStainless Steel
14Ball Seal2NBRNBR
15Position Indicator1POMPOM
16Driveshaft Upper Bearing1POMPOM
17Driveshaft Circlip1Steel, NickelplatedSteel, Nickelplated
18Driveshaft Upper Bearing1POMPOM
19Driveshaft Upper O-ring1NBRNBR
20Stop Adjustment O-ring1 (2-35)
2 (55-150)		NBRNBR
21Stop Adjustment Washer1 (2-35)
2 (55-150)		POMPOM
22Stop Adjustment Nut1 (2-35)
2 (55-150)		Stainless SteelStainless Steel
23Stop Adjustment Screw1 (2-35)
2 (55-150)		Stainless SteelStainless Steel

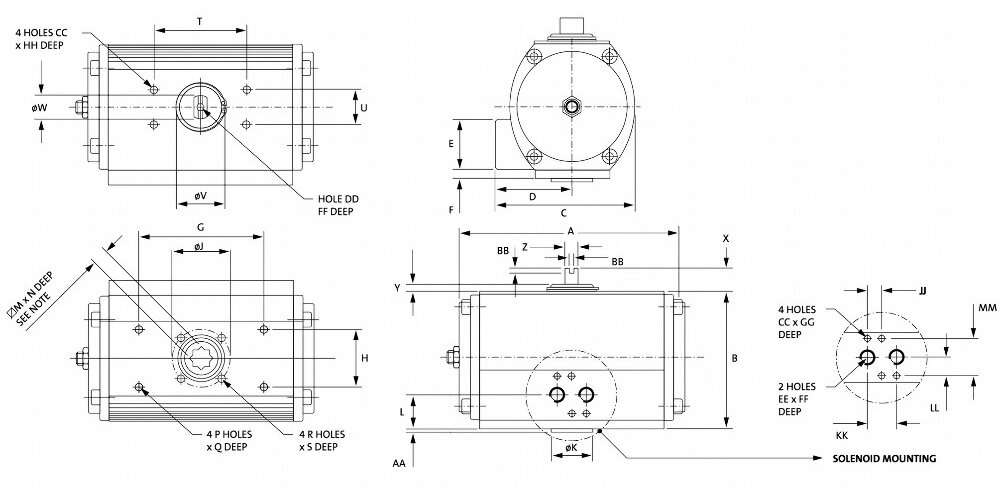

Dimensions

Metric (mm)

SizeISOABCDEFGHØJØKLMNPQRSTUØVØWXYZAABBCCDDEE (GAS)FFGGHHJJKKLLMM
2F03114,573,075,543,541,0–73,032,036,025,020,59,010,0M58,0M58,080,030,025,016,020,04,511,52,04,0M5M61/812,08,05,012,024,016,032,0
4F04133,090,587,547,541,0–73,032,042,030,020,511,012,0M58,0M58,080,030,031,020,020,04,511,52,04,0M5M61/812,08,05,012,024,016,032,0
8F05-F07162,0109,0105,057,042,07,573,032,050,035,028,514,016,0M610,0M610,080,030,035,020,020,05,011,53,04,0M5M61/812,08,05,012,024,016,032,0
12F07-F05194,0118,5121,067,043,08,0107,049,070,035,029,517,016,0M610,0M610,080,030,045,020,020,05,511,53,04,0M5M61/412,08,05,012,024,016,032,0
20F07-F10218,0140,5136,572,043,08,0107,049,070,055,029,517,019,0M610,0M813,080,030,050,032,020,06,519,03,04,0M5M61/412,08,05,012,024,016,032,0
35F10-F07266,0166,5156,078,043,08,5161,073,0102,070,030,022,024,0M612,0M1016,080,030,061,032,020,07,019,03,04,0M5M61/412,08,05,012,024,016,032,0
55F12-F10312,0207,5191,095,543,020,5161,073,0125,085,042,027,029,0M815,0M1220,0130,030,061,040,030,07,525,43,04,0M5M61/412,08,05,012,024,016,032,0
70F12-F10340,0207,5191,095,543,020,5213,0102,0125,085,042,027,029,0M812,0M1220,0130,030,072,040,030,07,025,43,04,0M5M61/412,08,05,012,024,016,032,0
100F14361,0250,0227,0113,543,039,5213,0102,0140,0100,061,036,038,0M1015,0M1625,0130,030,078,040,030,07,025,44,04,0M5M61/412,08,05,012,024,016,032,0
150F14390,0300,0280,0140,043,056,5244,0117,0140,0100,078,036,038,0M1222,0M1625,0130,030,078,040,030,07,025,44,04,0M5M61/412,08,05,012,024,016,032,0

Imperial (inches)

SizeISOABCDEFGHØJØKLMNP (UNC)QR(UNC)STUØVØWXYZAABBCC (UNF)DDEE (NPT)FFGGHHJJKKLLMM
2F034,512,872,971,711,61–2,871,261,420,980,810,350,3910-240,3110-240,313,151,180,980,630,790,180,450,080,1610-32M61/80,470,310,200,470,940,631,26
4F045,243,563,441,871,61–2,871,261,651,180,810,430,4710-240,3110-240,313,151,181,220,790,790,180,450,080,1610-32M61/80,470,310,200,470,940,631,26
8F05-F076,384,294,132,241,650,302,871,261,971,381,120,550,631/40,391/40,393,151,181,380,790,790,200,450,120,1610-32M61/80,470,310,200,470,940,631,26
12F07-F057,644,674,762,641,690,314,211,932,761,381,160,670,631/40,395/160,393,151,181,770,790,790,220,450,120,1610-32M61/40,470,310,200,470,940,631,26
20F07-F108,585,535,372,831,690,314,211,932,762,171,160,670,751/40,395/160,513,151,181,971,260,790,260,750,120,1610-32M61/40,470,310,200,470,940,631,26
35F10-F0710,476,566,143,071,690,336,342,874,022,761,180,870,941/40,473/80,633,151,182,401,260,790,280,750,120,1610-32M61/40,470,310,200,470,940,631,26
55F12-F1012,288,177,523,761,690,816,342,874,923,351,651,061,145/160,591/20,795,121,182,401,571,180,301,000,120,1610-32M61/40,470,310,200,470,940,631,26
70F12-F1013,398,177,523,761,690,818,394,024,923,351,651,061,145/160,471/20,795,121,182,831,571,180,281,000,120,1610-32M61/40,470,310,200,470,940,631,26
100F1414,219,848,944,471,691,568,394,025,513,942,401,421,503/80,593/40,985,121,183,071,571,180,281,000,160,1610-32M61/40,470,310,200,470,940,631,26
150F1415,3511,8111,025,511,692,229,614,615,513,943,071,421,501/20,873/40,985,121,183,071,571,180,281,000,160,1610-32M61/40,470,310,200,470,940,631,26

Torque Table (SR)

Spring-return torque (Nm) table

Label Tongs N° Air supply (bar)
Spring torque 4 5 5,5 6
0°90° 0°90° 0°90° 0°90° 0°90°
385,410,510,45,311,87,916,411,218,313,2
106,713,19,12,713,16,715,08,617,010,6
117,414,412,45,314,47,316,39,3
128,015,713,76,015,78,0
5812,021,821,812,030,320,534,524,738,728,9
1015,027,218,86,627,315,131,519,335,723,5
1116,529,925,812,430,016,634,220,8
1218,032,628,513,832,718,1
10826,741,040,926,657,843,566,252,074,760,4
33,421,234,224,651,133,359,641,868,050,2
1136,756,347,828,256,236,664,745,1
1240,161,452,931,561,340,0
24/04,88,88,84,912,38,314,010,015,711,7
4/26,111,07,62,711,06,112,87,814,59,5
4/36,712,110,45,012,16,713,98,4
4/47,313,211,55,613,27,315,08,9
44/08,715,816,69,520,813,725,017,929,222,1
4/210,819,614,45,618,69,822,914,027,118,2
4/311,921,717,67,821,812,026,016,2
4/412,923,620,710,124,914,329,216,8
84/021,138,438,921,653,936,661,444,168,951,6
4/223,843,233,612,048,627,056,134,563,642,0
4/329,052,846,022,253,529,761,037,2
4/431,757,650,824,958,332,466,136,7
124/028,852,452,929,373,349,783,559,993,770,1
4/236,065,554,716,266,136,676,346,886,557,0
4/339,672,162,530,072,740,382,950,5
4/443,278,669,133,779,343,988,448,7
204/047,786,886,947,8120,681,5137,498,3154,2115,1
4/253,7108,575,026,1108,659,8125,476,6142,393,4
4/365,5119,4102,648,9119,565,8136,382,6
4/471,6130,2113,554,9130,371,7
354/088,4160,8161,088,7223,4151,0254,6182,2285,7213,4
4/2110,5201,0138,948,5201,3110,8232,5142,0263,6173,2
4/3121,6221,1190,290,7221,4121,9252,6153,1
4/4132,6241,2210,4101,8241,5133,0
554/0141,0256,4256,8141,4356,3240,9406,0290,6455,7340,3
4/2176,3320,5221,577,3321,0176,8370,7226,5420,5279,2
4/3193,9352,6303,4144,7353,1194,5402,8244,2
4/4211,5384,6335,5162,4385,2212,1
704/0195,0354,0355,0196,0493,0333,0561,0402,0630,0471,0
4/2243,0443,0306,0107,0444,0245,0513,0314,0581,0382,0
4/3268,0487,0420,0201,0488,0269,0557,0338,0
4/4292,0531,0464,0225,0533,0294,0
1004/0265,0482,0483,0266,0670,0453,0764,0547,0857,0640,0
4/2331,0603,0417,0146,0604,0333,0697,0426,0791,0520,0
4/3365,0663,0571,0272,0664,0366,0758,0459,0
4/4398,0723,0631,0306,0725,0399,0
1504/0391,0711,0712,0392,0988,0668,01126,0806,01264,0944,0
4/2489,0889,0615,0215,0890,0491,01028,0629,01166,0766,0
4/3538,0977,0842,0402,0979,0540,01117,0678,0
4/4586,01066,0931,0451,01069,0589,0
2506606,0936,01159,0829,01600,01270,01821,01491,02042,01712,0
8808,01248,0957,0517,01398,0958,01619,01179,01840,01400,0
101010,01560,01196,0646,01417,0867,01638,01088,0
121212,01872,01215,0555,01436,0776,0
400101180,01820,02022,01382,02823,02183,03223,02583,03623,02983,0
121416,02184,01786,01018,02587,01819,02987,02219,03387,02619,0
151770,02730,02233,01273,02633,01673,03033,02073,0
161888,02912,02515,01491,02915,01891,0

Spring-return torque (in/lbs) table

Label Tongs N° Air supply (bar)
Spring torque 4 5 5,5 6
0°90° 0°90° 0°90° 0°90° 0°90°
38479397511217514599169123
105911684281085213276156100
1165128103401276415188
12711391215314577
58106193202115253167304218356269
1013324117568227119278170329222
1114626521395265146316198
1215928920070252122303173
108236362379254482356584459687562
33,421,234,224,651,133,359,641,868,050,2
11325498393220496323599426
12355544467278570381
24/0427882471036712488144109
4/25497712792481136913490
4/35910786381075912880
4/465117101491227014488
44/08715816695208137250179292221
4/21081961445618698229140271182
4/311921717678218120260162
4/4129236207101249143292168
84/0187340360207451298542389633480
4/2211382319133407219495304583390
4/3257467381171472262563353
4/4281510448220539311599384
124/0255464489281613405737529861653
4/2319580425165549289673413797537
4/3350638518231642356766480
4/4382696610297734422794523
204/04227688044591008663121386714171072
4/247596071126790947111076761304880
4/3580105785037610555811259785
4/46341152100248412066891452864
354/078214231489850186812292247160826251987
4/29781779129449516738742052125324301632
4/31076195715756971954107623331455
4/41174213518578982235127727181506
554/01248226923751356297919603583256441873169
4/2156028362063790266713943271199938752603
4/317163121251211123116171637202321
4/418723404296114333565203843462390
704/01726313332821877411627124951354857854383
4/22151392128581098369219354527277153623607
4/323724310347215384306237451413209
4/425844699409519864929282160303490
1004/02345426644702554560636906742482778785964
4/22929533738811485501626226151375972864896
4/332305868472320935860323069964367
4/435226399556827006705383879404750
1504/034606292658737618262543799377113116118788
4/243287868572221967397387390725551107477228
4/3476186466964308986394765103146442
4/4518694348216398098915657120407670
250653638284107117797133911047716070131581874915838
87151110458928504211607772314287104041696713085
10893913806982449691250576511518510333
121072616567107224898134037581160219065
4001010443161071872113069235811793128442227943330227657
121253219328166369854214981471826359195823122124446
15156652416118373989823235147642809819629
161670925771221941315827057180243330219024

Torque Table (DA)

Double-acting torque (Nm) table

Size Air supply (bar)
23455,567
12,94,45,97,38,18,810,3
26,810,313,717,118,820,523,9
37,911,915,819,821,723,727,7
413,920,827,734,738,141,648,5
516,925,433,842,346,550,759,2
830,045,060,075,082,590,0105,0
1033,850,767,684,593,0101,4118,3
1240,861,381,7102,1112,3122,5142,9
2067,3101,0134,6168,3185,1201,9235,6
35124,7187,0249,3311,7342,8374,0436,3
55199,0298,5398,0497,5547,3597,0696,5
70275,0412,5550,0687,5756,3825,0962,5
100374,0561,0748,0935,01028,51122,01309,0
150551,7827,51103,31379,21517,11655,01930,8
250882,71324,01765,32206,72427,32648,03089,3
4001601,02401,53202,04002,54402,84803,05603,5

Double-acting torque (in/lbs) table

Size Air supply (psi)
405060708090100
132,640,748,857,065,173,281,4
283,0103,8124,5145,3166,0186,8207,5
396,0120,0144,0168,0192,0216,0240,0
4168,5210,6252,8294,9337,0379,1421,3
5206,0257,5309,0360,5412,0463,5515,0
8365,0456,3547,5638,8730,0821,3912,5
10413,5516,9620,3723,6827,0930,41033,8
12497,0621,3745,5869,8994,01118,31242,5
20819,01023,81228,51433,31638,01842,82047,5
351527,51909,42291,32673,13055,03436,93818,8
552371,02963,83556,54149,34742,05334,85927,5
703344,54180,65016,85852,96689,07525,18361,3
1004552,55690,66828,87966,99105,010243,111381,3
1506712,58390,610068,811746,913425,015103,116781,3
25010740,013425,016110,018795,021480,024165,026850,0
40019485,524356,929228,334099,638971,043842,448713,8

Numbers

Label Type Size Finish Action Tree Threading Optional code
T Trutorq C‑Type 002 C‑Type A Standard 0 DA C & E‑Type 002 X=09 mm C‑Type M Metric VS Viton Seal
E E‑Type 004 CNI 1 SR 4/4 004 X=11 mm U Imperial XM Crossmount
S S‑Type 008 Epoxy 2 SR 4/3 008 X=14 mm FO Fail Open
X 180° C‑Type 012 Polyester 3 SR 4/2 012 X=17 mm FA Fast Acting
020 4 4 SR 4/1 020 X=17 mm HT High Temperature
035 5 5 SR 4/0 035 X=22 mm LT Low Temperature
055 0 DA C‑Type 250 055 X=27 mm
070 1 1 SR 12 070 X=27 mm
100 3 3 SR 10 100 X=36 mm
150 5 5 SR 8 150 X=36 mm
250 7 7 SR 6 250 X=46 mm
400 0 DA C‑Type 400 400 X=55 mm
